SW110 Puerta Abatible

The ASSA ABLOY SW110 Standard is an electro- mechanical swing door operator that relies on an innovative “push-and-pull” arm system to create safe passage for anyone, and anything.
Contactar a un asesor

Information

Made to blend into any environment, and due to its low-noise operation, the SW110 is ideal for every kind of setting: from healthcare facilities to airports, offices, residential buildings and busy public areas.

Furthermore, the ASSA ABLOY SW110 Standard swing door operator is fully compliant with Euro- pean standards and fire approved, making it ideal for creating and maintaining security, smoke and fire zones.

Silent and smart

Operated by a smart low-noise drive technology, the ASSA ABLOY SW110 Standard ensures extra silent opening and closing of the door.

For a more reliable performance from an operator that will experience fewer breakdowns and require less maintenance. The SW110 also comes with a host of additional features and can be adapted to meet local and national regulations.

Technical data

  • Drive Dimensions
  • Length: 600 mm
  • Height: 87 mm
  • Depth: 124 mm
  • Door closer size
  • EN4 – EN6
  • Recommended max. door weight and door width
  • Door Weight x (door width)²/3 PUSH = 65 kgm², PULL = 65 kgm²
  • Power supply
  • 230 V AC, 50 / 60 Hz
  • Power consumption
  • 67 W
  • Auxiliary voltage
  • 24 V DC, 1000 mA
  • Opening angle
  • 70° – 115°
  • Hold-open time
  • 3 – 20 s / 5 – 20 s
  • Ambient temperature
  • -15° C to +50° C
  • Relative humidity (non-condensing)
  • up to 85% rel. humidity, non-condensing
  • Type of protection
  • IP20
  • Arm systems

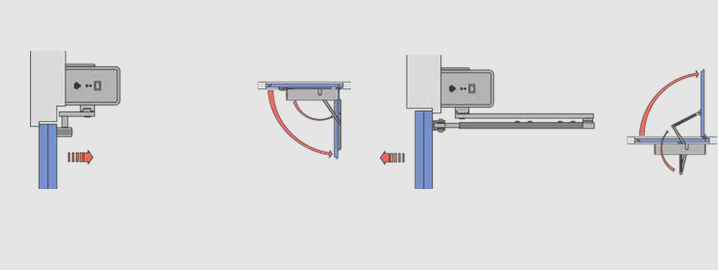

  • Standard arm push and sliding arm pull
  • Noise emission
  • Less than 45 dB

Explore what makes ASSA ABLOY SW110 Standard stand out:

  • Quiet, low-friction opening and closing technology
  • Full flexibility in selecting Full Power or Low Energy operating modes
  • Suitable for single and bi-parting doors with lintel or door leaf installation
  • Easy to maintain and service
  • Same installation set-up as our other operators, making upgrades a streamlined procedure
  • Available with drive system to support different door applications
  • Platform-based, coherent approach
  • The sensors can be easily installed and put into operation

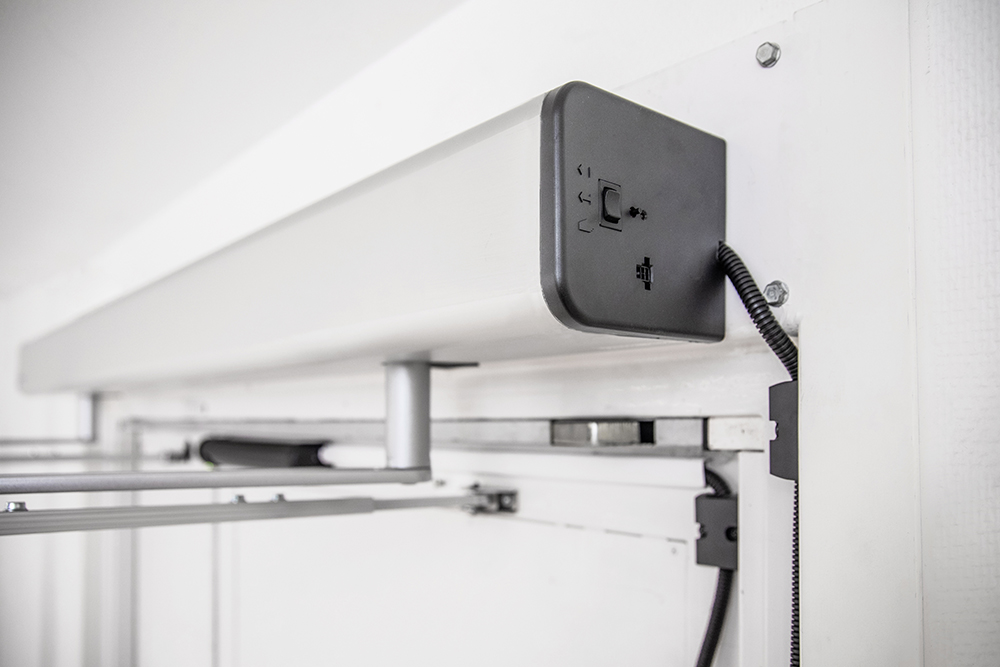

  • The operator is encased in an elegant aluminum cover
  • Delivered as an assembly kit for easy on-site installation
